Step 1
Dual reader
Contactless NFC + contact smart card over USB-A.
Accessory — reader & licenseAvailableSwiss made 🇨🇭

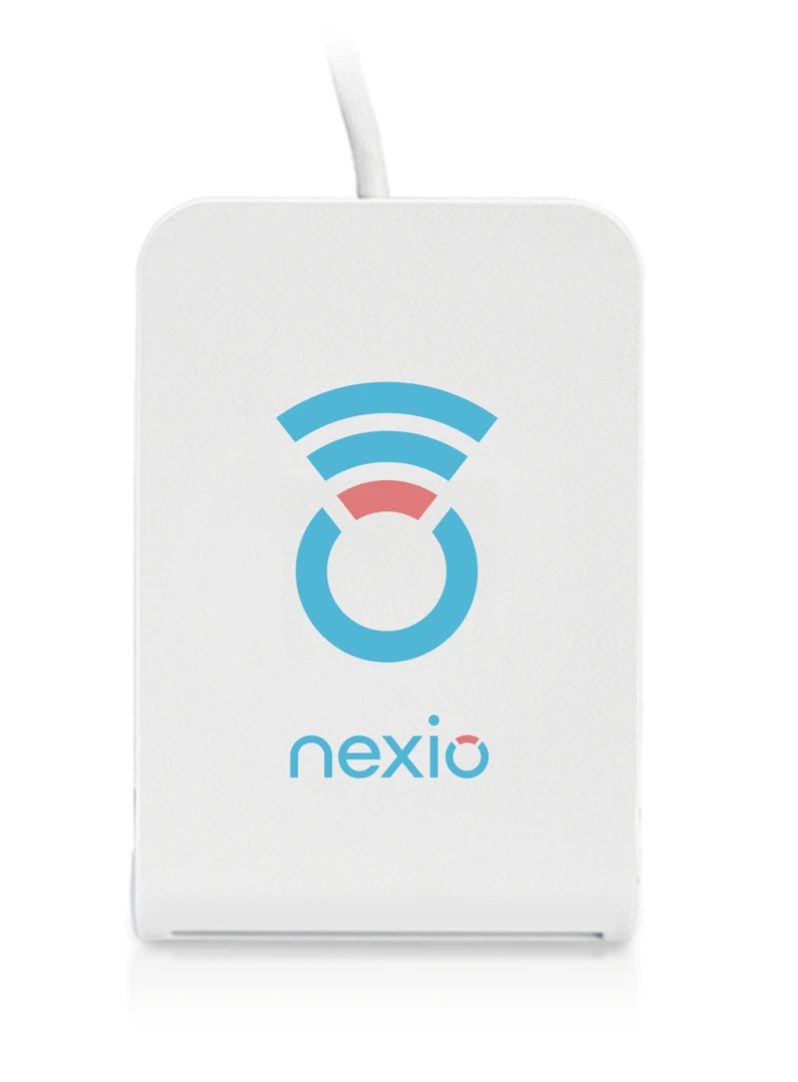

nexReader
One reader. Two interfaces.
Dual-interface USB-A reader supporting both NFC and contact smart cards. Delivered with an NFC license card and two nexCard cards, it provides everything required to deploy card-based workflows and activate compatible Nexio features.
How it works
The kit that activates cards.
nexReader brings together the reader, license card, and two nexCard cards. Enough to start a card workflow without complex setup.
Step 2
License

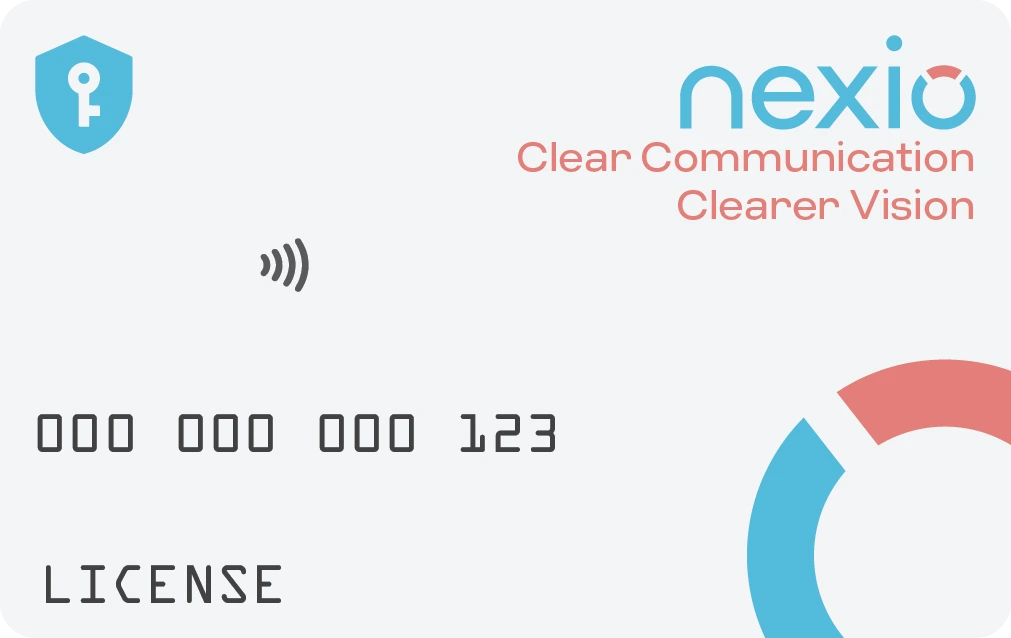

The license card activates NFC and Eye Care Card.
Step 3
Nexio products
Activates nexBox, nexBox-Dual, nexRef, Refractor 900.
One reader, two interfaces.
The dual-interface reader supports nexCard NFC cards as well as NIDEK / Marco Eye Care Card smart cards. One device to read and manage both technologies.
Key points
The essentials at a glance.
- NFC and contact smart card support
- Includes reader, license card and 2 nexCard cards
- Activation of NFC and Eye Care Card workflows
- Supports additional Nexio license cards
Compatibility
Designed for the Nexio ecosystem.
Final compatibility depends on the device, firmware, and activated license.
nexCardnexRefnexBoxnexBox-DualHaag-Streit Refractor 900
Specifications
The details that matter.
- Host interface
- USB 2.0 Full Speed, USB-A, bus powered
- Cable
- 2.9 m
- Contact
- ISO/IEC 7816 Part 1/2/3/4, 5 V, 3 V and 1.8 V cards, T=0 and T=1 protocols
- Contactless
- ISO/IEC 14443, ISO/IEC 18092, ISO/IEC 15693, 13.56 MHz frequency
- Contactless cards
- ISO/IEC 14443-4 Type A/B, ISO/IEC 15693-3, MIFARE, FeliCa, Calypso, J-LIS, NFC Forum Type 1/2/3/4/5
- Reading distance
- Up to 50 mm depending on tag type
- API & driver
- PC/SC, CCID, SAM ID-000 slot
- Dimensions
- 98.0 x 66.0 x 11.0 mm
- Weight
- 81.5 g, 5 g tolerance
- Enclosure
- White and gray ABS, Nexio branding
- LED and buzzer
- 3 LEDs, 2 blue for operation status, 1 green for power, monotone buzzer
- Conditions
- -10 to 70 °C, maximum humidity 95 % without condensation
- Compliance (manufacturer)
- CE, UKCA, FCC, VCCI, MIC, RoHS3, REACH, Microsoft WHQL
Use cases
In the field.
- Reading a nexCard NFC card on PC with nexRef
- Reading a NIDEK / Marco Eye Care Card on PC
- Activating NFC / Eye Care Card features on nexBox or nexBox-Dual
- Activating a card workflow with Haag-Streit Refractor 900
- Starter kit to test an offline card workflow
- Adding or replacing a reader on an existing refraction workstation
A card workflow to set up?
Tell us about your installed base, instruments, and expected flow. We will quickly tell you what is possible.
